Isolation Transformers

Isolation Transformers

AG Power System Overview

An isolation transformer is a stationary device designed to separate primary and secondary windings, ensuring physical and electrical isolation between circuits. It transfers electrical energy through magnetic induction, using a magnetic field to induce an electromotive force (EMF) in a secondary circuit while maintaining the original frequency. In transmission and distribution systems, isolation transformers are employed to adjust voltage levels by stepping up or down, ensuring that voltage and current capacities match between the coils. A crucial role of these transformers is to mitigate voltage spikes in supply lines, which could otherwise disrupt service or damage equipment if they reach the load. When placed between power supply lines, an isolation transformer helps diminish voltage spikes before they impact the load. Additionally, it prevents grounding issues on the secondary side, thereby reducing ground loop interference and minimizing noise effects in the load equipment.

Isolation Transformer Specifications

Rating: 40 to 1000 KVA & 1 to 20 KVA (1 Phase)

Input Voltage: 415 V AC +/- 10%

Output Voltage: 415 V AC, 3 Phase

Input-Output Voltage Ratio: 1:1

Type: Delta/Star

Cooling: Air Cooled

Common Mode Noise Attenuation: 100 dB

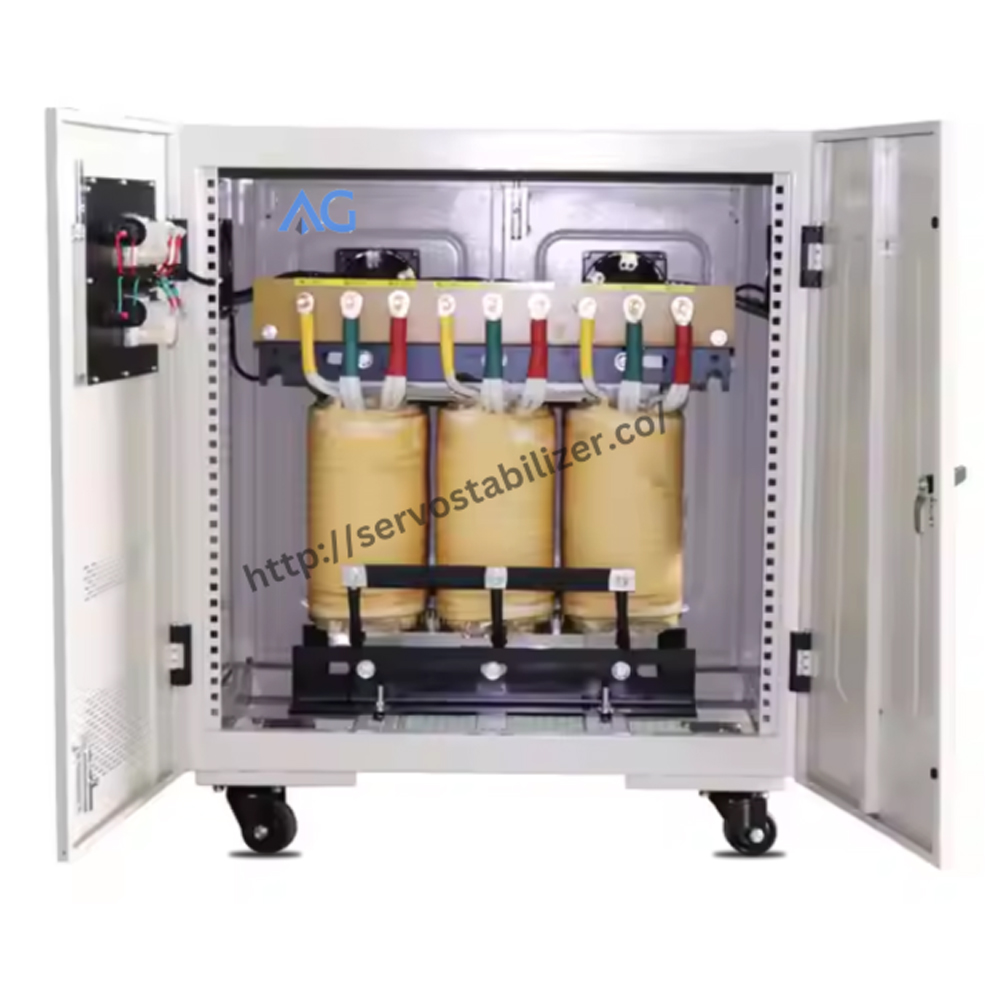

Constructional Features

The Isolation Transformer shall invariably be in one air-cooled section.

The enclosures are constructed from MS angles and CRCA MS sheets of the best quality from reputed manufacturers only.

The professional painting process comprises:

  • 7 Tank Pre-Treatment
  • Primer Coating
  • Two Coats of Final Finish Paint or Powder Coating
Explore Our Isolation Transformers

Technical Details for Isolation Transformer

  • What are the key features of the Isolation Transformer?

    Designed to provide electrical isolation, ensuring safety and reducing noise in sensitive equipment.

  • How does the Isolation Transformer improve safety?

    Isolates the load from the power source, minimizing shock hazards and protecting sensitive devices.

  • What is the cooling method used in Isolation Transformers?

    Features an air-cooled design, enhancing efficiency and prolonging the lifespan of the transformer.

  • What construction materials are used for Isolation Transformers?

    Constructed from high-quality MS angles and CRCA MS sheets, ensuring durability and reliability.

  • What is the painting process for Isolation Transformers?

    Involves a seven-tank pre-treatment, primer coating, and two coats of final finish paint or powder coating for protection.
